WhisperKOOL Quantum Twin 18000 Ducted Split System 220V High Efficiency Review

Ready to transform your wine cellar cooling system for the better? The WhisperKOOL Quantum Twin 18000 Ducted Split System offers high-efficiency cooling for your wine cellar. Upgrade today for the perfect wine storage conditions!

NOTE: A qualified HVAC-R technician is required for the installation of your WhisperKOOL Quantum Twin 18000 Ducted Split System 220V High Efficiency. Failure to adhere to this requirement will void the warranty.

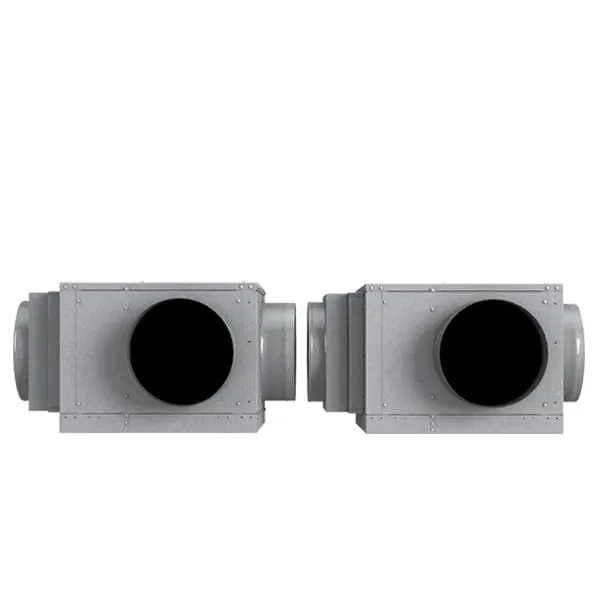

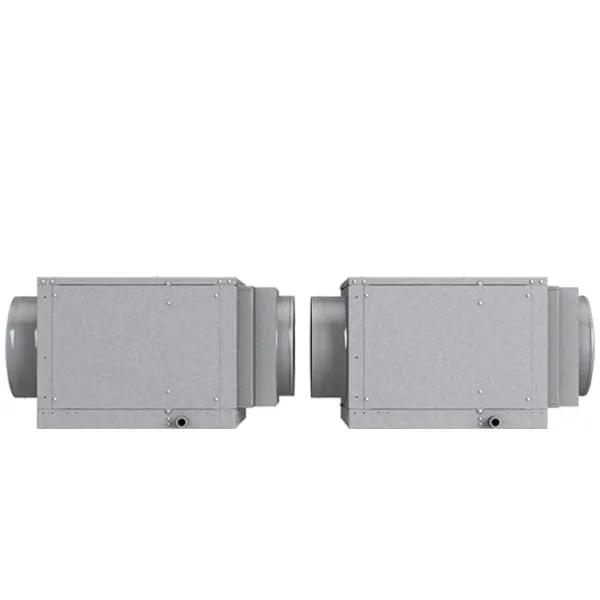

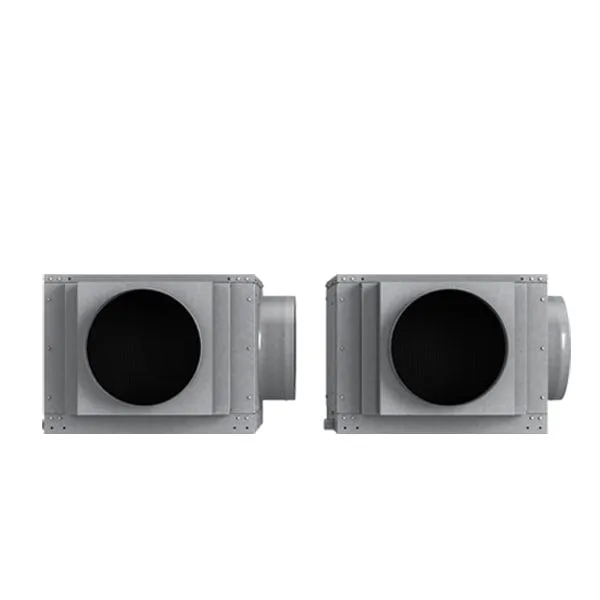

Quantum Twin Series cooling systems are designed to cool large scale wine cellars & wine collections. The Quantum Twin 18000 cooling unit is one of the highest-capacity units that we offer. This split system includes multiple ducting options allowing for ease and flexibility of installation as well as accessibility. The air handler can be ducted up to 25 feet, creating a virtually silent cellar environment. The evaporator coil is coated with an electro-fin coating to minimize corrosion.

This cooling system is designed to operate in ambient conditions as low as -15 degrees and is crafted with the highest quality, professional-grade parts for longevity and performance. The Quantum Series is sure to give you that extra boost of cooling power and the quality you have come to expect from WhisperKOOL.

Other Sizes:  for 3000 cu.ft wine cellar.  for 4000 cu.ft wine cellar. for 7500 cu.ft wine cellar.

See all our  for more options or browse through our collection of .

Match your cooling system with unique and modern wine racks for !

WHY BUY FROM US: Wine Coolers Empire is a trusted dealer of specialty wine cellar air conditioners, commercial wine cellar refrigeration units, and residential wine cellar coolers. More WhisperKOOL wine cellar cooling unit reviews can be found on our page.

for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our .

Buy the WhisperKOOL Quantum Twin 18000 Ducted Split System 220V High Efficiency today and enjoy your amazing wines at their best temperature!



Features

Features:

• TOUCH DISPLAY

The KDT Digital Touch Display can be placed as far as 50 feet from the unit and features Advanced System Protection including alarm notifications for when certain conditions are not met.

• BOTTLE PROBE

WhisperKOOL cooling units precisely measure; the temperature of the wine in the cellar with the WhisperKOOL Bottle Probe. This liquid temperature measuring probe gives; a more accurate; reading of the temperature of the wines stored; in the cellar as compared to measuring the air temperature.

• LOW NOISE LEVELS

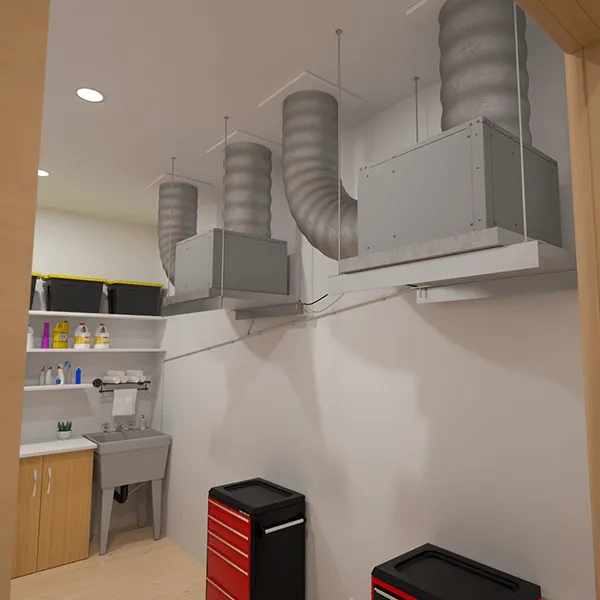

The Quantum wine cooling systems are fully ducted. WhisperKOOL Fully Ducted Systems give you endless ducting options, keeping the unit out of sight and significantly reducing noise in the wine cellar.

• LARGE CELLAR SOLUTION

The Quantum Twin is the perfect choice for wine enthusiasts looking for a cooling system designed to cool large commercial & residential wine cellars.

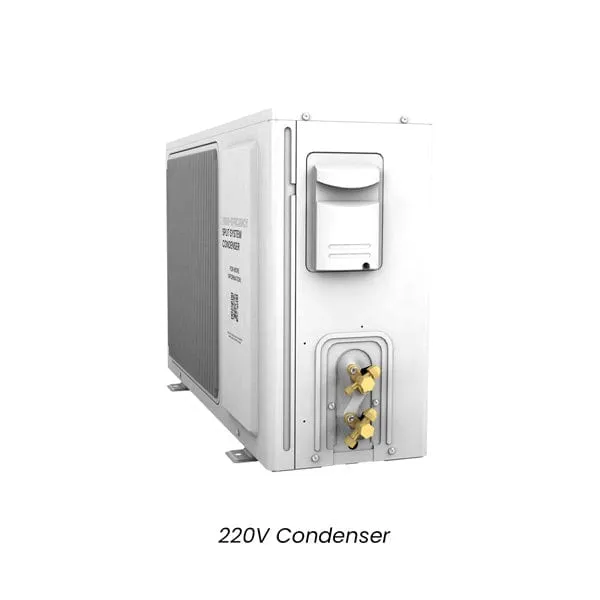

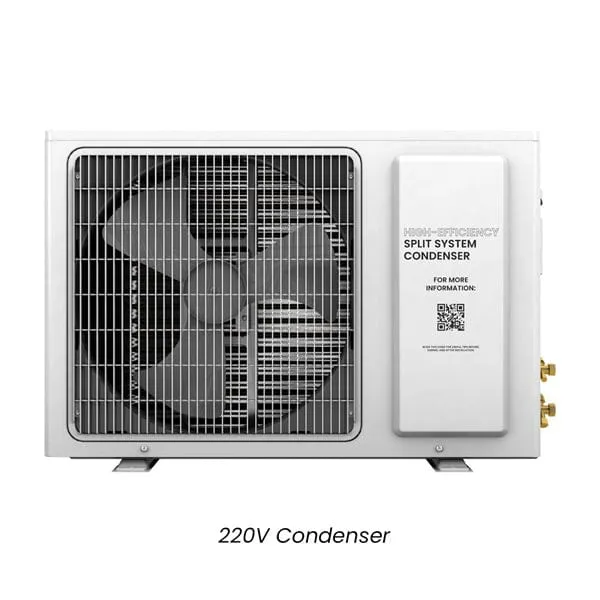

• HIGH-EFFICIENCY CONDENSER

The 220V system is highly energy-efficient, it uses 50% less energy to operate, resulting in lower energy costs. Additionally, it can adapt to changing temperature conditions and maintain ideal wine storage conditions in extreme temperatures, as low as -20°F (cold winter temperatures) and as high as 120°F (hot summer temperatures.)



Manuals

Manuals:

Is this a right-sized unit for your wine cellar? Talk to an Expert at 1-888-407-7770 or email: [email protected] to ensure that this cooling system is best suited for your needs.



BTU/h

BTU/h

13,806 – 18,250

The BTU/h value range shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) that do not offer the insulation capacity required to maintain the optimal cellar environment.

We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

 Note: The systems do not include a line set.

Specifications

Specifications:

• Cellar Size: Approx. 5000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier
• Dimensions: Evaporator: 29.5”L x 30.9”W x 19.8”H | Condenser: 31.18"L x 10.75"W x 23.25"H
• Drain Line: 3/4” ID CPVC
• BTU/h: 13,806 – 18,250
• WhisperKOOL Warranty: A limited 2-year product warranty is offered with all split systems.

Please click below for the full specification of the WhisperKOOL Quantum Series.



24V THERMOSTAT CONVERSION KIT (OPTIONAL)

24V THERMOSTAT CONVERSION KIT (OPTIONAL)

Introducing our new for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar.

• Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet, or laptop.
• Monitor run time and energy usage.
• Set alarm notifications.
• View your cellar conditions from your mobile device.

*PLEASE NOTE: WhisperKOOL does not provide smart thermostats. If you choose the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will need to purchase your own 24V smart thermostat to operate the equipment. The WhisperKOOL Customer Satisfaction Team will not provide support for issues related to smart thermostats.

For more information, check out .



WhisperKOOL Accessories

WhisperKOOL Accessories (Optional)

You may add WhisperKOOL replacement parts and accessories to enhance the performance and longevity of your wine cooling systems. These add-ons include items that upgrade and protect the system. Check out the other .

Exterior Protective Housing for WhisperKOOL Split Systems

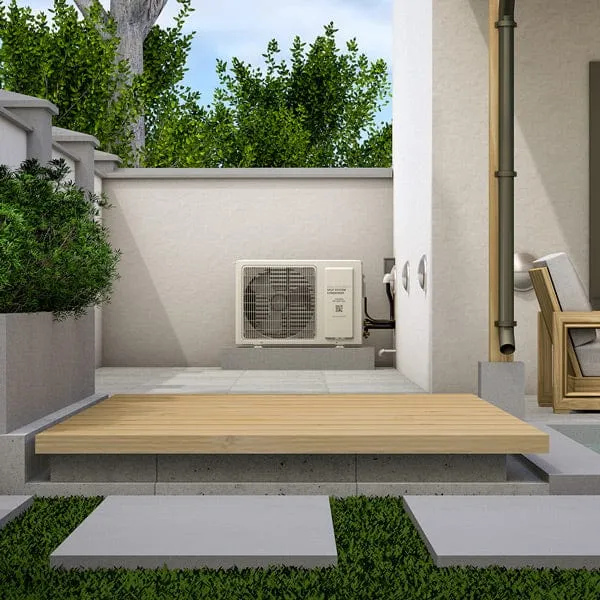

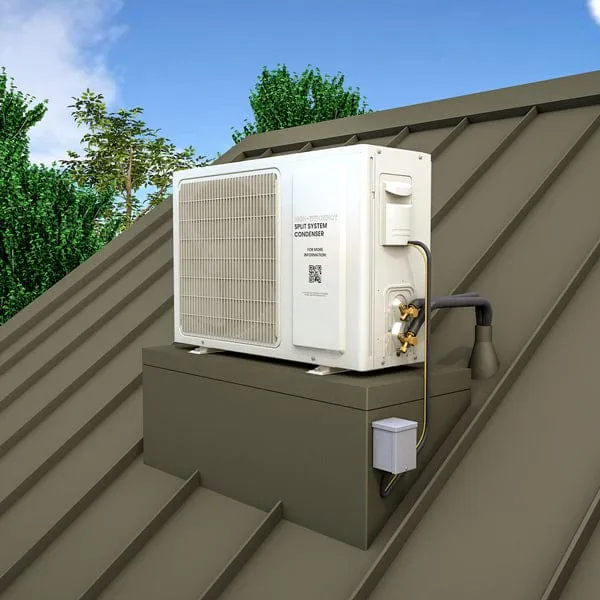

The Exterior Protective Housing protects the condenser part of WhisperKOOL split systems from the weather and elements when installed outdoors. Exterior Condenser Housing is used with all WhisperKOOL Ducted Split Systems and WhisperKOOL Ductless Split Systems.

• Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
• Easily assembled in the shop or on the job
• Rain Trough under hinge to catch moisture that might seep through the hinge
• WhisperKOOL® provides fasteners
• Dimensions (W x H x D): 20” x 20” x 27”

Condenser Coil Coating

The Condenser Coil Coating is a protective coating applied to a WhisperKOOL wine cellar cooling system's condenser coil to protect it from salt air. This coating helps to extend the lifespan of the cooling unit, especially in areas near the coast or beach where salt air can be a problem.
