It’s no surprise the CT Sounds Meso components have been a best-selling product of CT Sounds for years. The Meso 6.5” 3-way component speakers are custom engineered to bring you the highest tonal accuracy by providing a well-balanced experience of rich tones from powerful mid-bass to snappy highs.

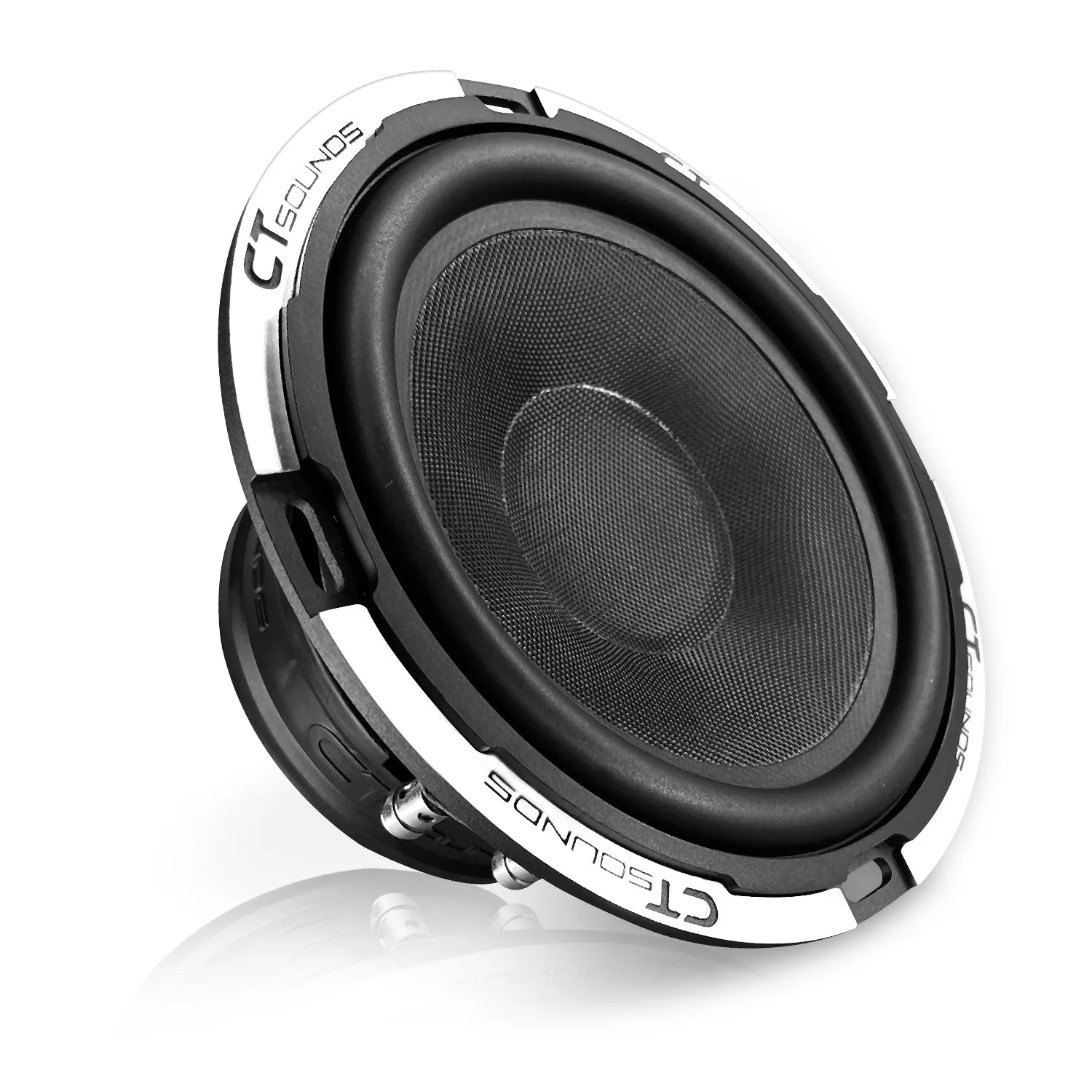

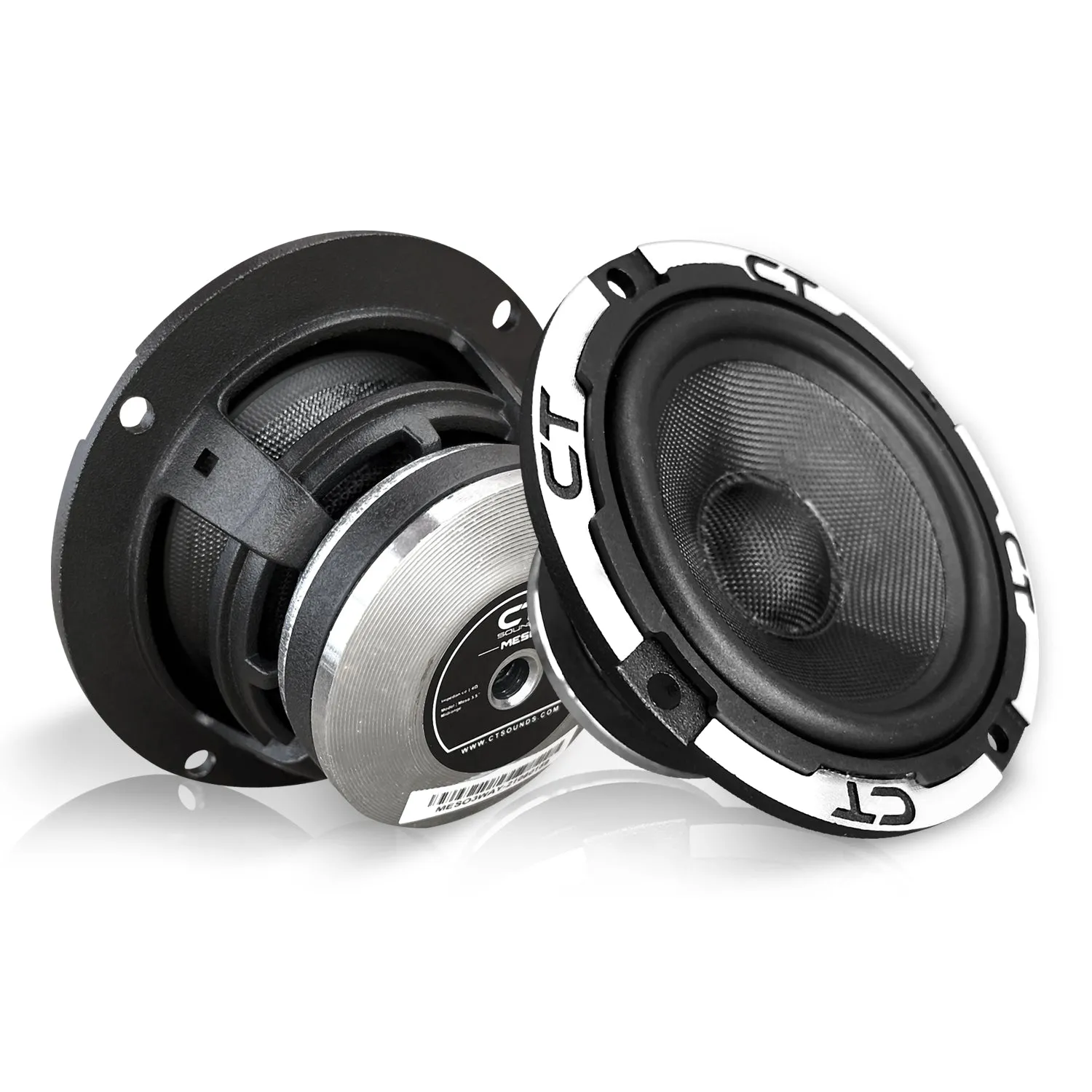

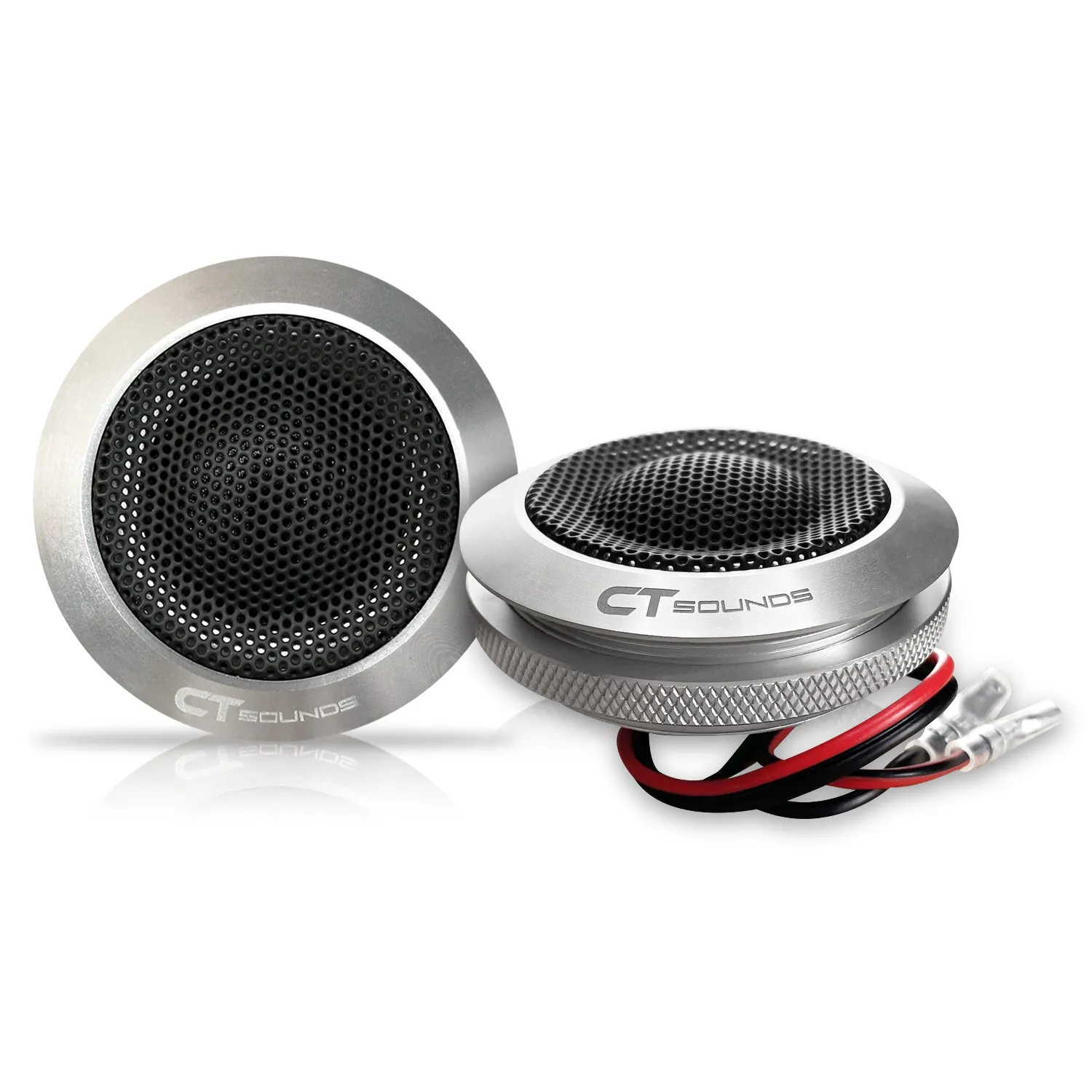

The 6.5-inch component woofer features a fiberglass cone and nitrile butadiene rubber surround which allows the 6.5 component speaker to deliver top notch sound quality and mid-bass to your vehicle. The 3.5-inch midrange speaker features a fiberglass cone, nitrile butadiene rubber surround, and a neodymium motor assembly which will have your music heard from several blocks away. To finish the equation, the 1-inch silk dome tweeters are suspended in ferrofluid with a N38H motor assembly to provide an accurate reproduction of your favorite tracks. These 25mm silk-dome tweeters are housed in a brushed aluminum flush mount bracket to keep your ride looking sharp.
If you want to play your music loud enough for the entire neighborhood to hear, then look no further than the Meso 6.5” 3-Way Component Speaker Set.
| Quick Facts: |
| RMS Power: |
250 Watts (Pair) |
| MAX Power: |
500 Watts (Pair) |
| Speaker Type: |
6.5" 3-Way Component |
| Voice Coil Configuration: |
Single 4-Ohm |
- 6.5” 3-Way Car Component Speaker Set
- Power per speaker set: 125W RMS | 250W MAX
- Total system power: 250W RMS | 500W MAX
- Voice Coil Configuration: Single 4-Ohm
- 1.4” EISV Voice Coil
- Fiberglass Cone
- Nitrile Butadiene Rubber Surround
- Aluminum Basket
- 25mm Silk-Dome Tweeter

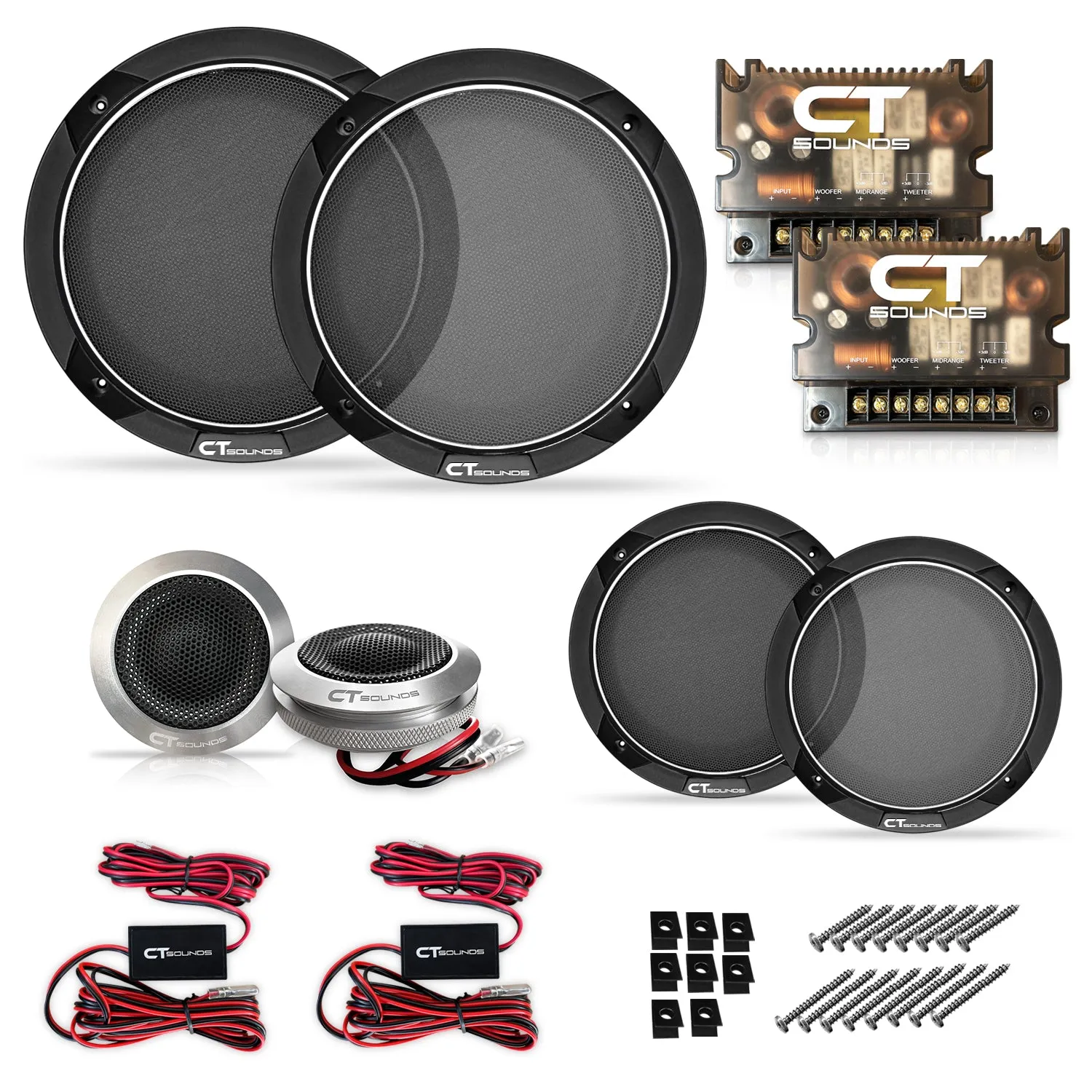

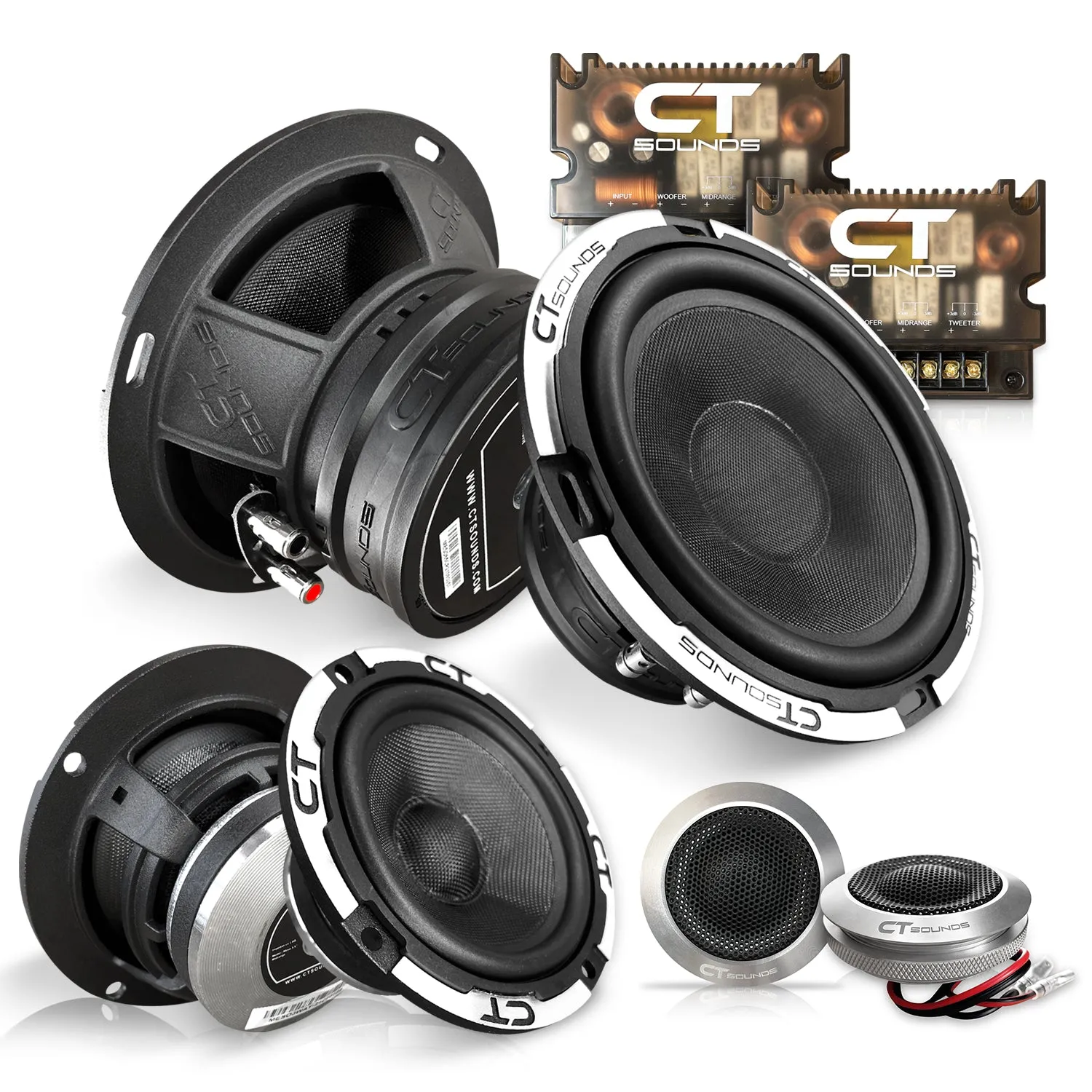

- 3-Way Component Speaker Set Includes:
- (2) 6.5” Midrange Woofers
- (2) 3.5” Neo Midrange Woofers
- (2) 25mm Silk-Dome Tweeters
- (2) 18 dB Passive Crossover Networks
- Screws and Mounting Brackets
- Premium Wire For Easy Installation
- Speaker Grilles for 6.5” and 3.5” Midrange Woofers
| 6.5" Woofer Specifications: |
| Voice Coil Size: |
1.4" |
| Sweep Voltage: |
11 V |
| Output SPL (@1w/1m): |
89 dB |
| X-Over Point: |
2.8 kHz |
| Resonant Frequency: |
65 Hz |
| Frequency Response: |
50 Hz - 4.5 kHz |
| Magnet Weight: |
21 Oz |
| Magnet Type: |
Ferrite |
| 3" Mid-range Woofer Specifications: |
| Power per Speaker: |
30W (RMS) | 60W (MAX) |
| Total System Power: |
60W (RMS) | 120W (MAX) |
| Output SPL (@1w/1m): |
88 dB |
| X-Over Point: |
2.5 kHz |
| Resonant Frequency: |
65 Hz |
| Frequency Response: |
300 Hz ~ 1500 Hz |
| Magnet Weight: |
1.9 Oz |
| Magnet Type: |
Neo
|
| Tweeter Specifications: |
| Sweep Voltage: |
2.8 V |
| Output SPL (@1w/1m): |
90 dB |
| Frequency Response: |
1500 Hz ~ 20 kHz |
| Tweeter Size: |
25mm |
| Tweeter Type: |
Silk-dome |
| Magnet Type: |
Neo |

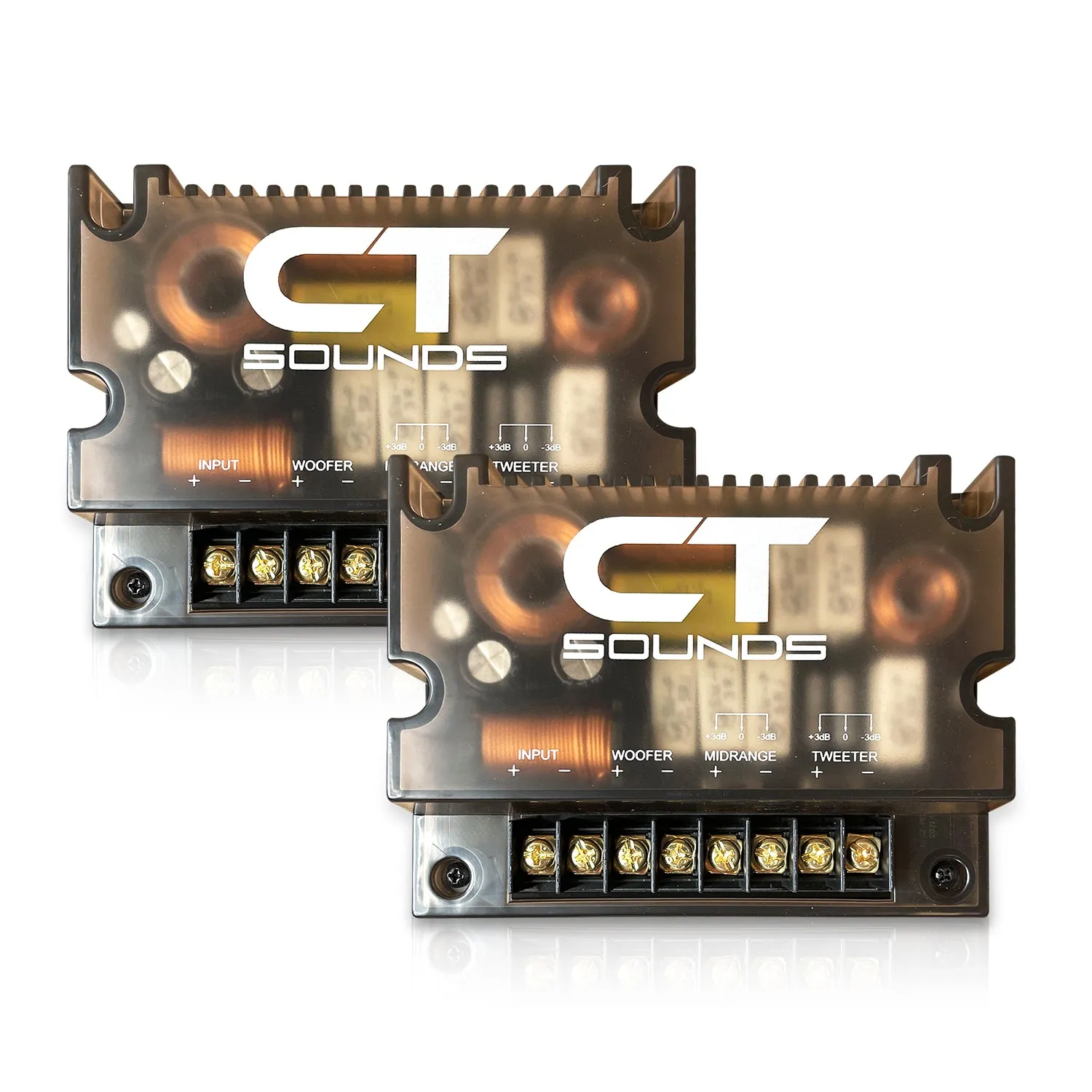

| Crossover Specifications: |
| Crossover Circuit: |
5.6 μF capacitor / 100 V |
| Filter for Woofer: |
12 dB |
| Filter for Mid-range: |
18 dB |
| Filter for Tweeter: |
12 dB |
Mounting Info
| 6.5” Woofer Mounting Specifications: |
| Overall Diameter: |
6.75" |
| Cutout Diameter: |
5.70" |
| Magnet Diameter: |
4.17" |
| Magnet Height: |
1.22" |
| Mounting Depth: |
2.87" |
| Overall Height: |
3.10" |
| 3” Mid-range Woofer Mounting Specifications: |
| Overall Diameter: |
3.56" |
| Cutout Diameter: |
2.87" |
| Magnet Diameter: |
2.03" |
| Mounting Depth: |
1.62" |
| Tweeter Mounting Specifications: |
| Overall Diameter: |
2.12" |
| Cutout Diameter: |
1.75" |
| Mounting Depth: |
0.75" |
