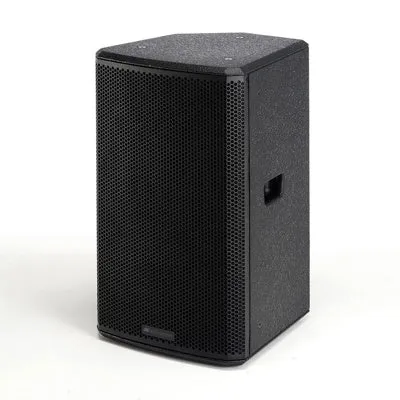

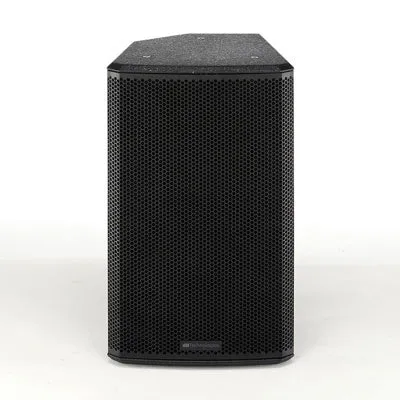

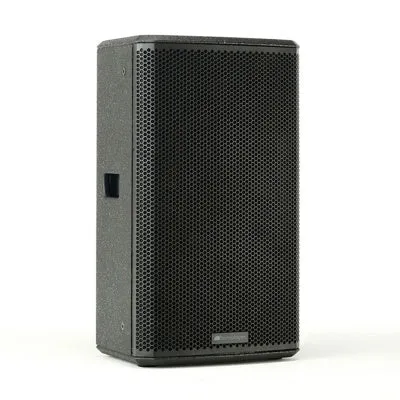

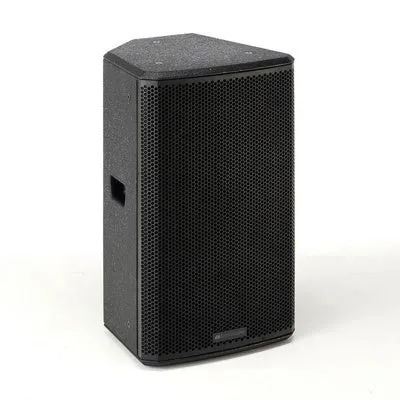

Born as an evolution of wooden LVX active series, the new LVX P family moves into the installation world with a passive selection of cabinets where a clean, essential design merges with a very detailed and coherent audio performance.

LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.

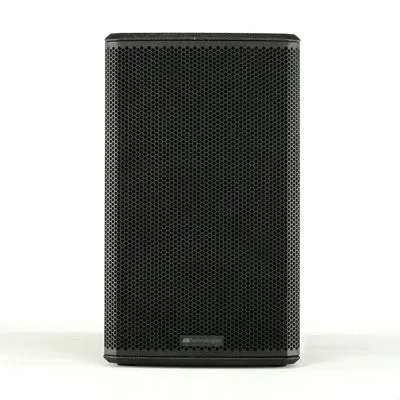

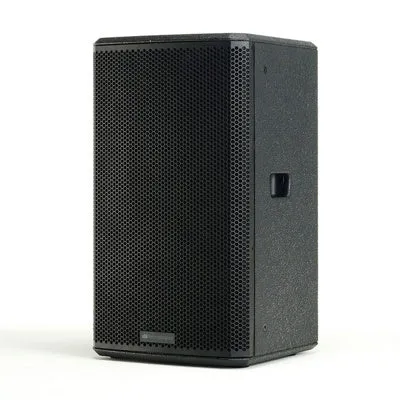

Full range LVX P12 provides a 90x60 dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.

The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP12H or vertical brackets (VB-LP1215V).

The cabinet features 1 integrated handle per side and a 36 mm pole mount plate.

All enclosures and accessories of LVX P series are available in black or white version.

Technical Data

• Speaker Type: 2-Way Passive Speaker

Acoustical Data

• Peak Power: 800 W
• Impedance: 8 Ohms
• Frequency Response [- 10 dB]: 65- 21.000 Hz
• Max SPL: 127 dB
• HF: 1 "œ, 1.35" v.c.
• Directivity: 90x60 °
• Horn: Rotatable
• LF: 12"œ, 2" v.c.

Input

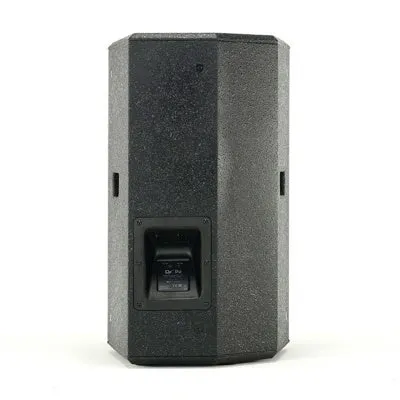

• Signal Input: 1x Speakon (Pin 1 = ) (Pin 1-=-)
• Signal Output: 1x Speakon (Pin 1 = ) (Pin 1-=-)

Mechanics

• Housing: Plywood
• Pole Mount: 36 mm

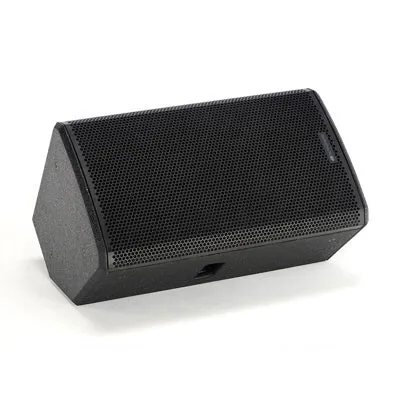

• Angle Up: Monitor use 40°
• Rigging Points: 12 x M8

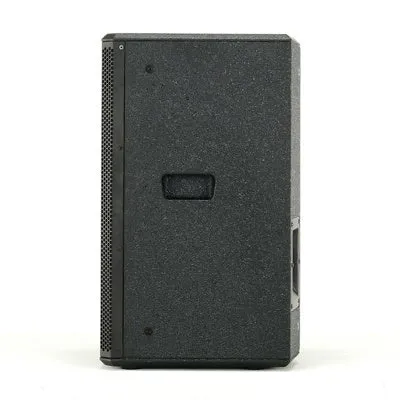

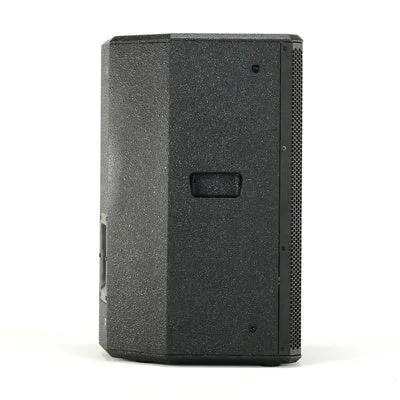

• Handles: 2 (1 per side)
• Width: 360 mm
• Height: 610 mm
• Depth: 360 mm
• Weight: 15.1 kg
