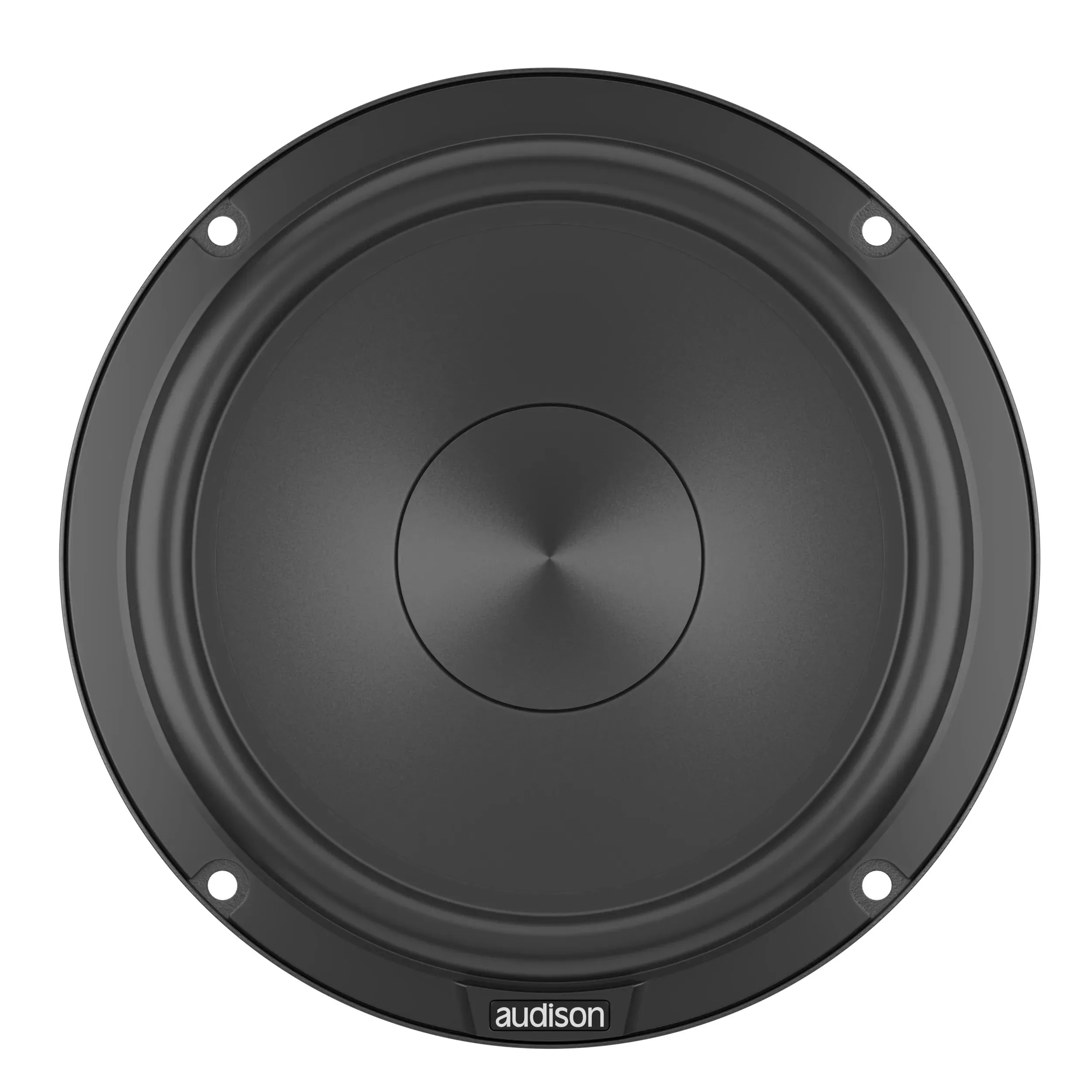

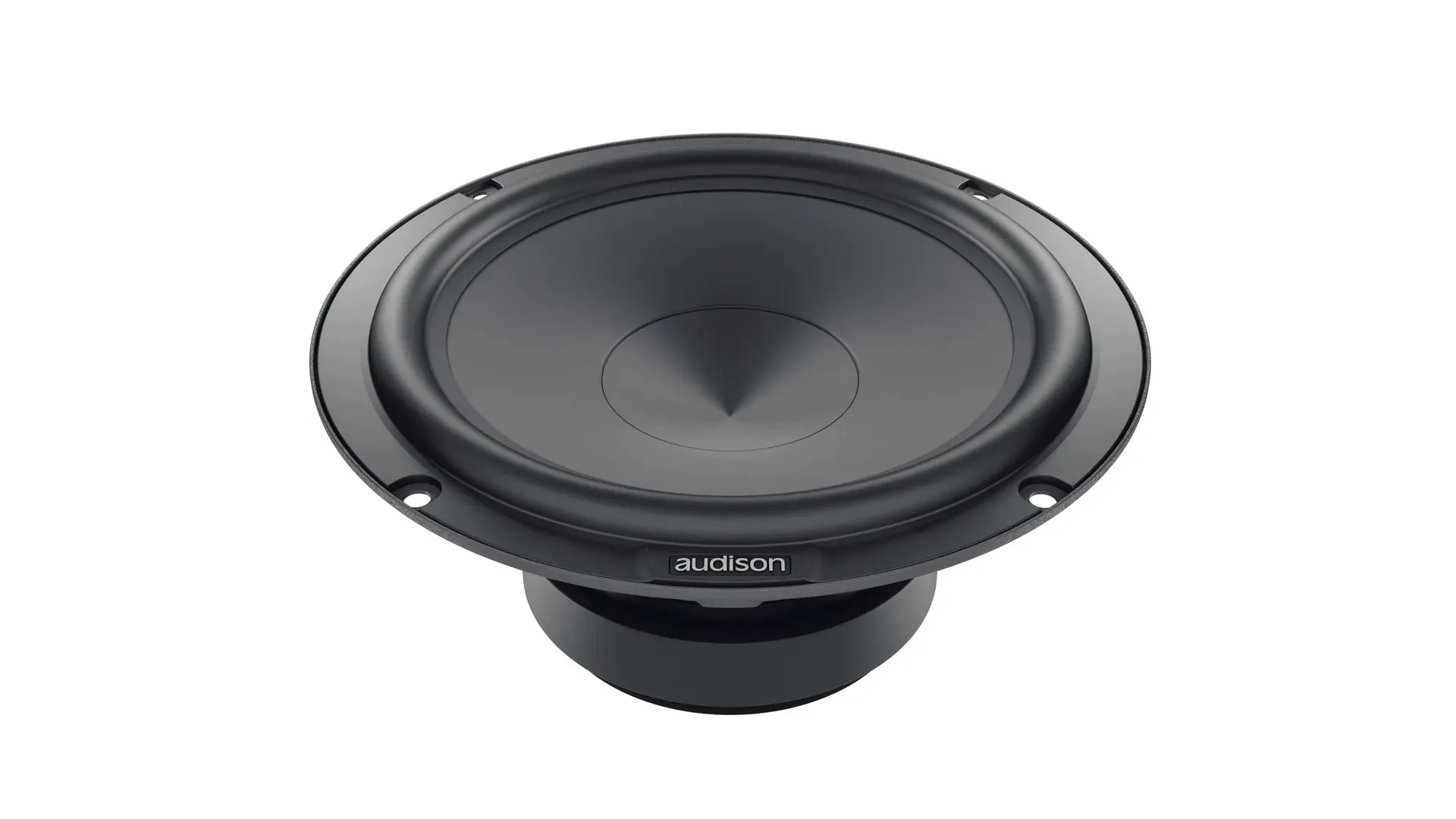

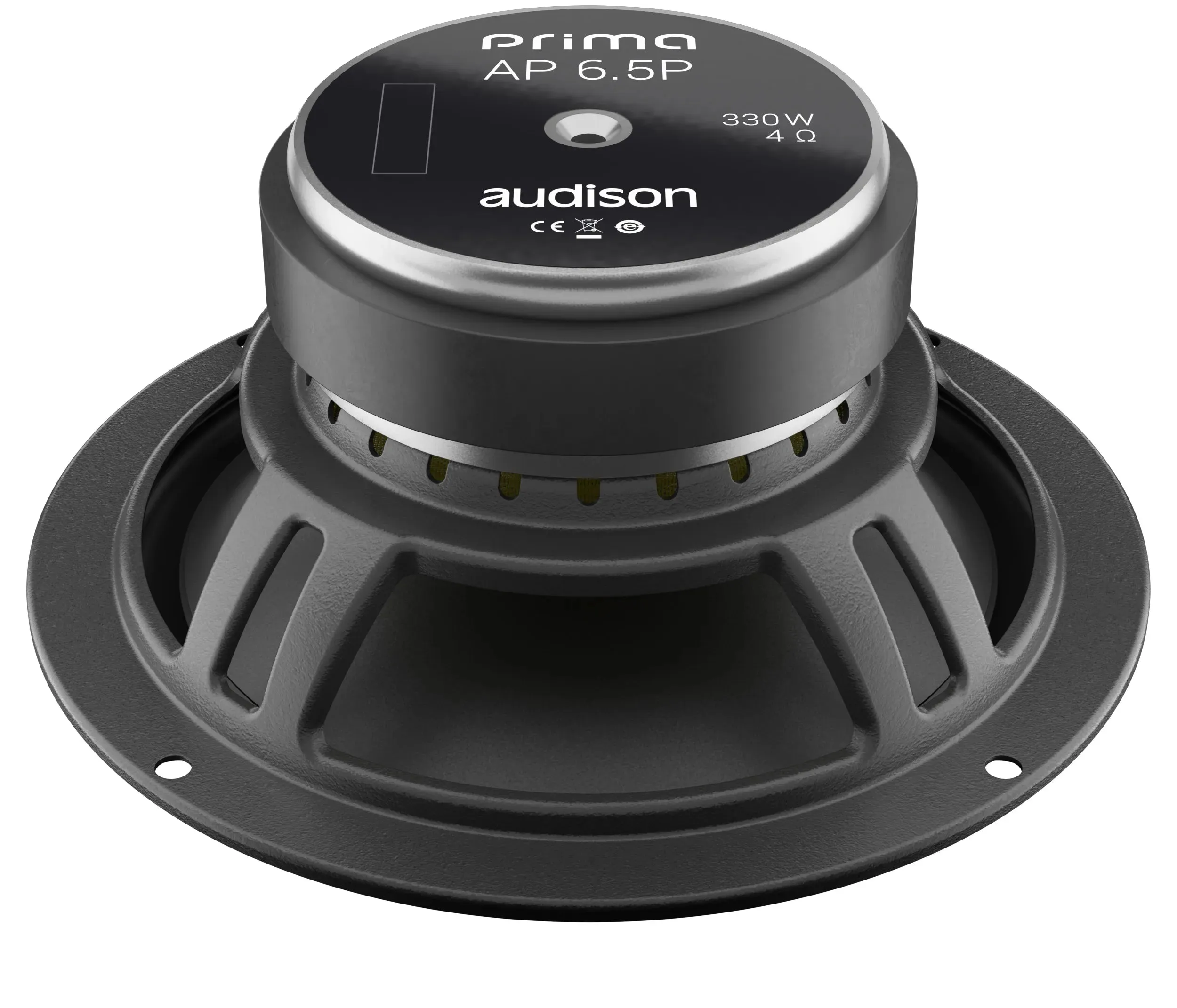

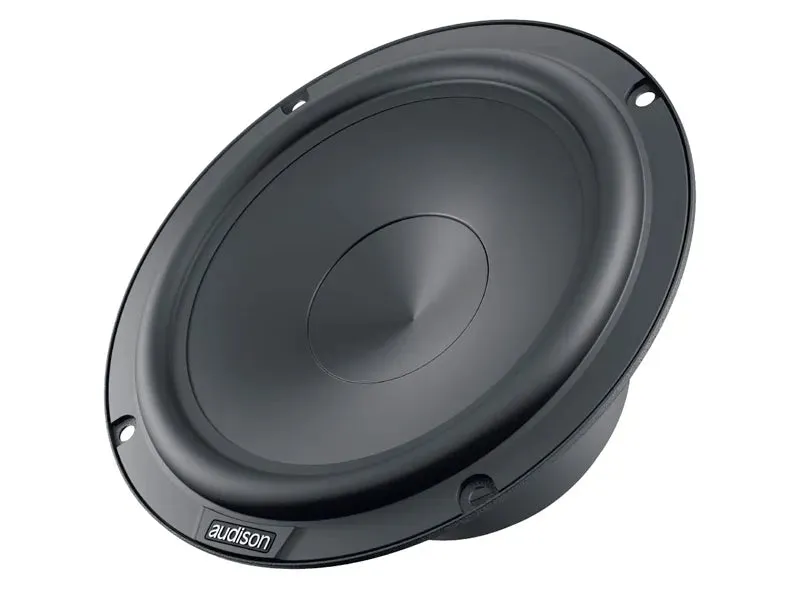

AP 6.5PWoofer | 330 W Peak Power | 165 mm | 4 ohm


AP 6.5P woofer component has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency featuring a very wide excursion to cope with the most important dynamic peaks without any compression. Its impressive magnetic assembly provides the energy needed for perfect control even during limit excursions. The CCAW (Copper Clad Aluminium Wire) voice coil (32 x 14 mm, 1.25 x 0.55 in) optimally manages the greater applied power. The basket was completely redesigned with the aid of simulations to lower the resistance of air flows, while maintaining compact sizes to facilitate the installation.


TECHNICAL SPECS

Size165 mm
Power Handling - Peak330 W
Power Handling - Continuous110 W
Impedance4 Ohm
Frequency Response50 - 5k Hz
Voice Coil Ø32 mm
Voice Coil MaterialCCAW
Woofer Qes0,6
Cone MaterialWATER-REPELLENT TREATED PAPER CONE
Xmax5.6 mm

ELECTRIC-ACOUSTIC SPECS

D132 mm
Re3.1 Ohm
Fs60 Hz
Vas11.4 l
Mms14.6 g
Cms0.47 mm/N
BL5.35 T•m
Qms7.6
Qts0.55
Le Standard0.29 mH
Spl92.5 dB

GENERAL

Weight1.45 kg

DIMENSIONS

Dimension A165 mm
Dimension B141 mm
Dimension C75 mm
Dimension D66.5 mm
Audison Prima AP 6.5P
  • DefaultTitle

$ 95.00

$ 79.00
