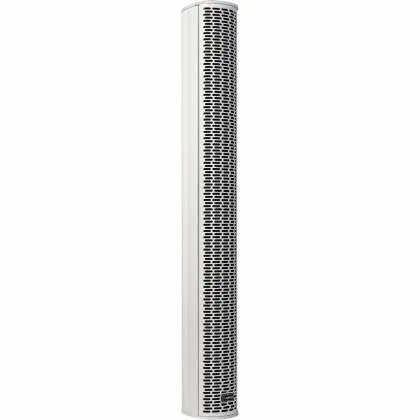

The white Ashly IS 2.8PW 8 x 2" Passive Dual-Z Focused Directivity Column Speaker is a cost- effective way to provide precise vertical dispersion, and consistent sound levels front-to-back of a venue... especially when combined with Ashly amps and processors that incorporate Protea or AquaControl™ software.

They fit perfectly next to flat-screens in conference rooms. Combined with an SP 12.1P sub, you can create an effective "system on a stick" for churches, wedding receptions and corporate events. Both models ship with flush-mount brackets. Two IS speakers can be joined with an optional joining bracket.

IS Series are slim column array speakers designed to deliver high-quality speech and music in venues that require high intelligibility, low physical profile and wide, yet consistent coverage. They are a cost-effective way to provide vertical pattern control, and consistent sound levels front-to-back of a venue... especially when combined with Ashly amps and processors that incorporate Protea or AquaControl™ software. IS columns fit perfectly next to flat-screens in conference rooms; combined with an SP 12.1P sub, you can create an effective "system on a stick" for churches, wedding receptions and corporate events. Their durable all metal enclosures will withstand the rigors of portable use, as well as installation and an impedance switch (8 O/32 O) allows use for both 2/4 speaker or multiple speakers per channel (i.e. distributed) configurations, without loading down the amplifier and without the need for transformers. Available in two configurations: IS 2.8P 2" x 8 Column and IS 3.8P 3" x 8 Column, they are designed to provide optimum performance when used with Ashly's Protea or AquaControl-based DSP. Two speakers may be stacked (using the optional plate) for additional throw where needed. Add the SP-12.1P 12" Subwoofer for a kicking low-frequency response. Flush wall brackets are supplied. Other mount options are also available.

Features

• 8 x 2-inch matched, high power handling transducers with Neodymium magnet structures and heat-resistant voice coils
• Switchable 8 O / 32 O impedance allows up to eight loudspeakers to be driven by a single amplifier channel.
• AquaControl™ and Protea DSP presets for selected Ashly power amplifiers and DSP processors (see page 6 for listing)
• 2-pole Euroblock connector, plus 2 x ¼-inch phone jacks
• High-strength and light aluminum enclosure
• Durable, chip-resistant polymer coating
• Optional pole, tripod, and tilt or flush wall mounts

Specifications

• Transducer: 8 x 2-inch (51 mm), Neodymium
• Frequency Response(-10dB limits): 115 Hz - 20 kHz
• Sensitivity (ref 2.83V): 88 dB
• Nominal Impedance: 8 O / 32 O switchable
• Maximum Continuous SPL, @ a MIV (continuous / peak): 104 dB / 115 dB
• Maximum Continuous SPL, calculated from power handling (continuous / peak): 109 dB / 115 dB
• Maximum Input Voltage (MIV): 28 dBV, 25.1 V (equivalent to 80 W into rated impedance)
• Power Handling: 120 W
• Beamwidth: Horizontal: 190°, Vertical: 30°
• Directivity Index (DI): 14.4 dB
• Directivity Factor (Q): 27.4
• Input Connectors: 2 x ¼-inch (6.3 mm) phone jack, 1 x 2-position Euroblock
• Mounting Provisions: IS-TWM Tilt Wall Mount, IS-FWM Flush Wall Mount Bracket (included)
• Enclosure Material: Aluminum
• Dimensions (HxWxD): 24.00 in. x 2.76 in. x 3.54 in. (610 mm x 70 mm x 90 mm)
• Net Weight: 6.4 lbs. / 2.9 kg
