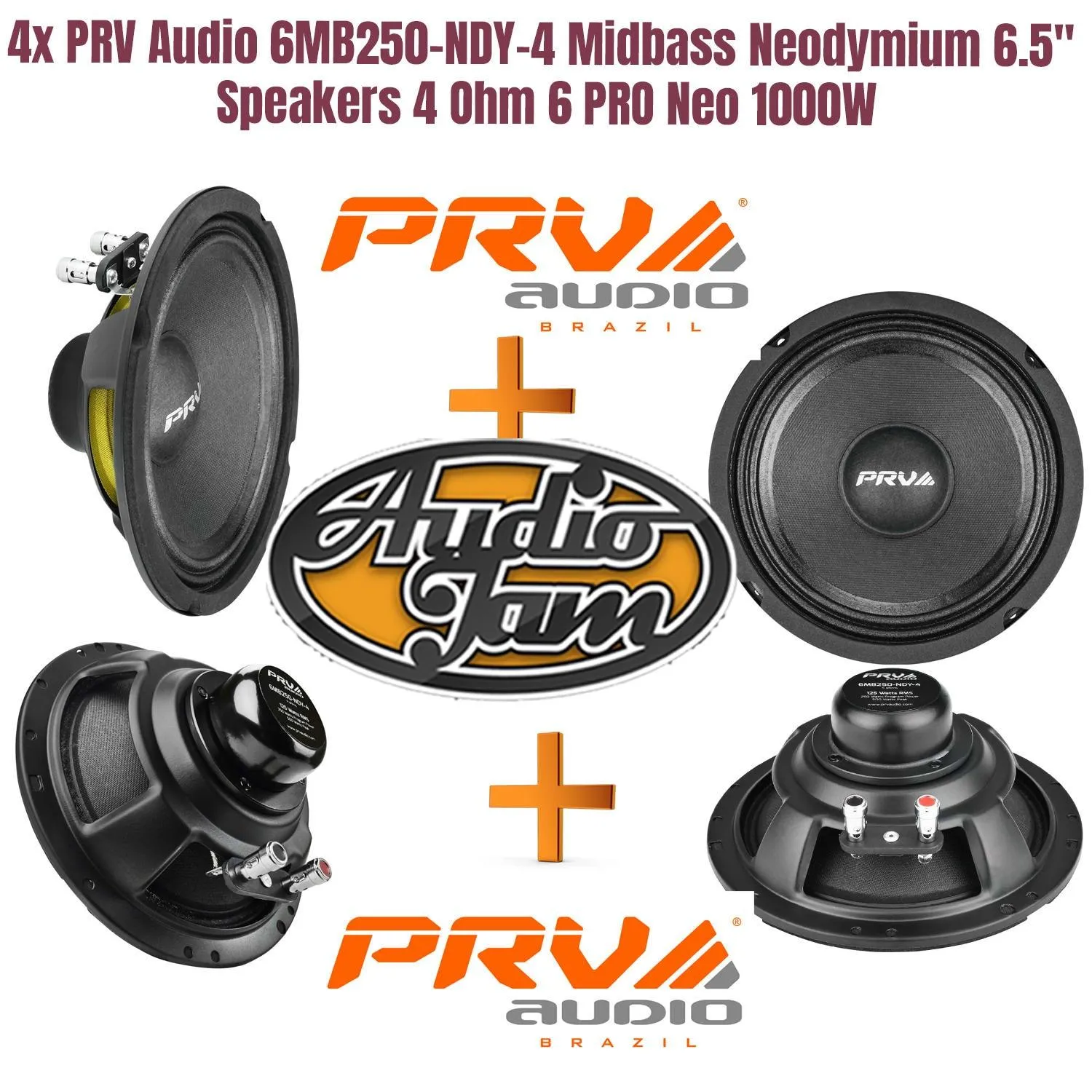

4 x 6MB250-NDY-4 6.5" Mid Bass Woofer

The 6MB250-NDY-4 offers smooth lower response through a punchy mid bass range and the frequency response that takes your applications smoothly through the 6,500 Hz range. The size and punch of this pro audio driver makes it perfect for a mid range driver in a 3 way loudspeaker cabinet or woofer in your studio monitor while offering outstanding mid to lower vocal support, and at less than 2 pounds it won’t add much to your cabinet weight or your car audio installs.

GENERAL SPECIFICATIONS

Nominal Diameter 6″ (152 mm)

Nominal impedance 4 Ohms

Rated AES Power Handling (RMS) 125 Watts

Program Power 250 Watts

Sensitivity 2.00V at 1m 94 dB

Recommended Hi Pass Crossover**

**For Full Power Handling 125 Hz**

**12db Per Octave Crossover

Frequency Response at -10dB 115 – 6,500 Hz

Voice Coil Diameter 1.5″ (38 mm)

Voice Coil Wire CCAW

Voice Coil Winding Depth 11.0 mm

Former Material Kapton

Magnetic Gap Depth 5.0 mm

Frame Material Stamped Steel
