Includes:

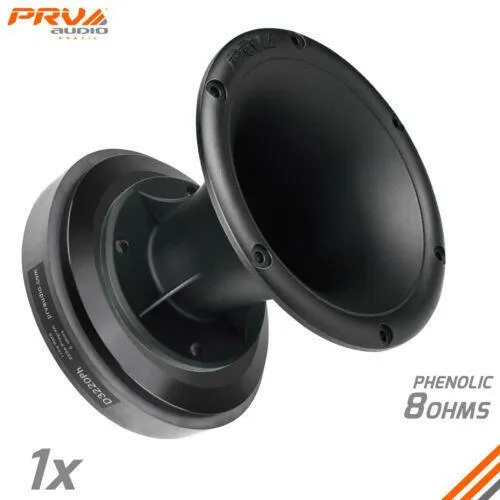

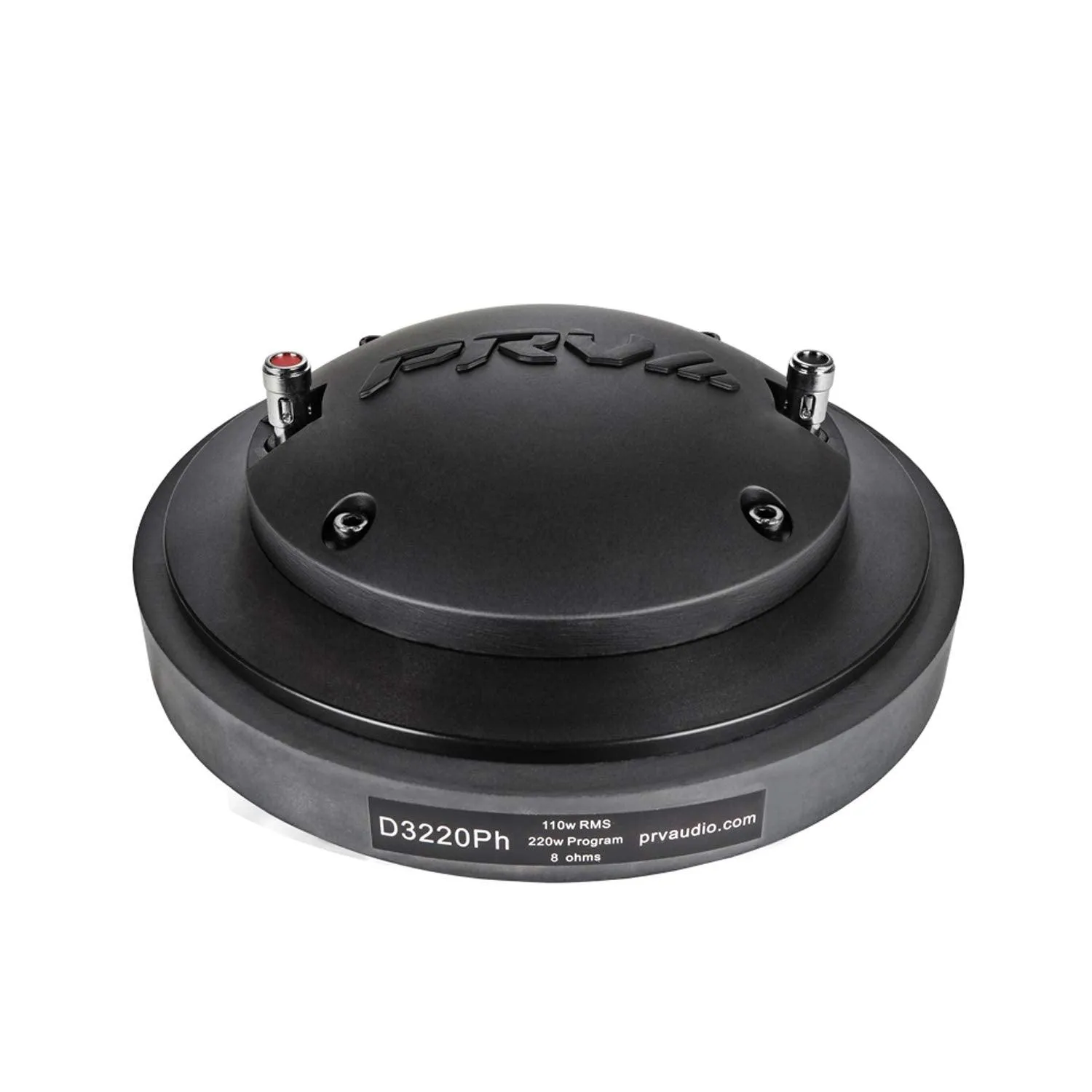

1x PRV Audio D3220Ph PRO AUDIO PHENOLIC Compression Driver

1x PRV Audio WGP14-50 Black Waveguide Horn

Features

The PRV Audio D3220Ph, pro audio phenolic compression driver offers unsurpassed vocal and midrange reproduction. The specially designed phenolic diaphragm on a Kapton former offers a smooth sound required for proper voice production systems.

The D3220Ph with a 2” opening and large 3” voice coil is perfect for large venue loudspeaker enclosures or line array systems where high sound quality and SPL is required. 4 M6 bolt mounts permit mounting to most 2” waveguides. D3220Ph is designed to ensure a quality sound and long-lasting play in most any environment.

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter 2” (50 mm)

Nominal impedance 8 Ohms

Rated AES Power Handling (RMS) 110 Watts

Program Power 220Watts

Sensitivity 2.83V at 1m 109 dB

Recommended Hi Pass Crossover**

**For Full Power Handling 800 Hz**

**12db Per Octave Crossover

Frequency Response at -10dB 650 – 7,500 Hz

Voice Coil Diameter 3”(76.2 mm)

Voice Coil Wire Copper

Voice Coil Former Material Kapton

Diaphragm Material Phenolic resin

Flux Density 1.80 T

Magnet Material Ferrite
